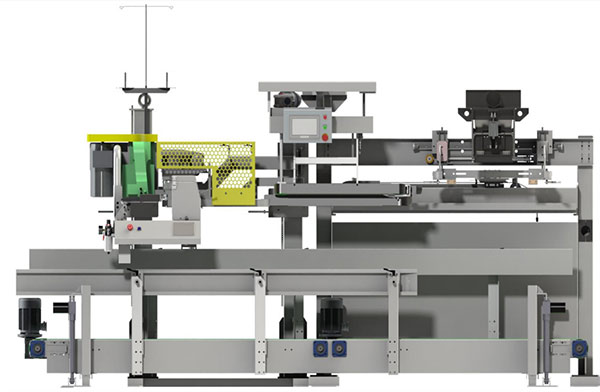

This machine is suitable for automatic packaging of granules and coarse powder, and it can work with the bag width of 400-650 mm and the height of 550-1050 mm. It can automatically complete opening pressure, bag clamping, bag sealing, conveying, hemming, label feeding, bag sewing and other actions, less labor, high efficiency, simple operation, reliable performance, and it is a key equipment to complete woven bags , Paper-plastic composite bags and other types of bags for bag sewing operations for customers with high automation level .

Technical parameters:
1. Working capacity: 600 bags / hour
2. Package weight: 25-50 kg
3. Package specification: width 400-600mm; length 550-1050mm
4. Power supply: three-phase four wire 380V / 2.0kw
5. Air source pressure: > = 0.5MPa
6. Compressed air consumption: 3m3 / h
7. Tag picking success rate: > 98%
8. Delivery label speed: 14 / min
9. Overall dimension: 4100mm(L)*2700mm(W)*1750mm(H)

The highly automated packaging and palletizing system consists of automatic weighing and feeding system, semi automatic packaging and conveying machine, automatic sewing machine, conveyor, bag reversing mechanism, shaping machine, industrial robot, automatic pallet library, PLC control system and other equipment, which can complete highly automatic quantitative packaging and palletizing process for granular materials, powder materials.
The highly automatic line is available for woven bags, PE bags, paper-plastic composite packaging bags, all-paper packaging bags, all-plastic packaging bags and open or valve port packaging bags. It is widely used in food、 chemicals、 engineering plastics、 fertilizer、building materials、 pigments、minerals industries. The automatic line has high packaging accuracy which can achieve +/-0.2%； no dust pollution；high degree of automation, the entire line requires only one worker to manually bag, other processes are completed automatically ； the palletizing speed can reach 200-600 bag / hour, which can meet the capacity requirements of most customers; the investment amount is low, and only about one third of the fully automatic packaging palletizing line.
