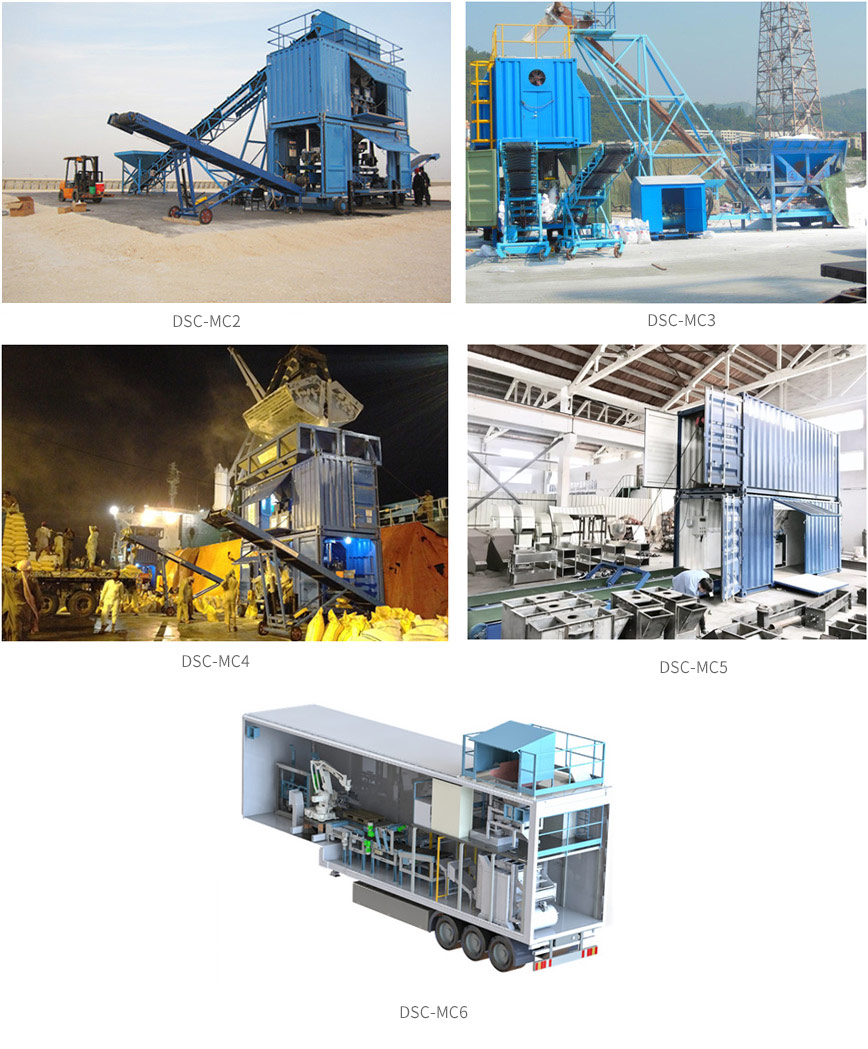

Mobile containerized packing machine is widely used for bulk packaging in the ports，docks, grain depots, mines, and will help you out of the problem,simply put which will help you in three ways.
a)Good mobility.With container structure, all devices are integrated in two containers, it is very conveniently for you to transit to anywhere you want.After it finishes its work,you can take it to next working place easily.
b)Save time and space.With container structure,all devices are integrated in two containers, which needs less space.All machines in the containers have been installed and debugged before leaving the factory, Also they don't need a base foundation,which really help you save a lot of time.
c)Less pollution and injury. Closed operation of devices can greatly reduce injury and pollution from material dusts to human beings and the environment.
Technical parameters
|
Model |
Production line |
Weighing range |
Accuracy |
Packing speed |
Air source |
|
DSC-MC12 |
Single-line, |
20-100kg |
+/- 0.2% |
700 |
0.5-0.7Mpa |
|
DSC-MC22 |
Double-line, |
20-100kg |
+/- 0.2% |
1500 |
0.5-0.7Mpa |
|
Power |
AC380V,50HZ, or customized according to the power supply |
||||
|
Working temperature |
-20℃-40℃ |
||||
|
Bag type |
Open mouth bag, valve port bag, PP woven bag, PE bag, Kraft paper bag,Paper-plastic composite bag,Aluminum foil bag |
||||
|
Feeding mode |
Gravity flow feeding,auger feeding,belt feeding,vibrating feeding |
||||
|
Packing mode |
Automatic quantitative weighing, manual bagging,automatic filling,manual assistance, machine sewing |
||||
